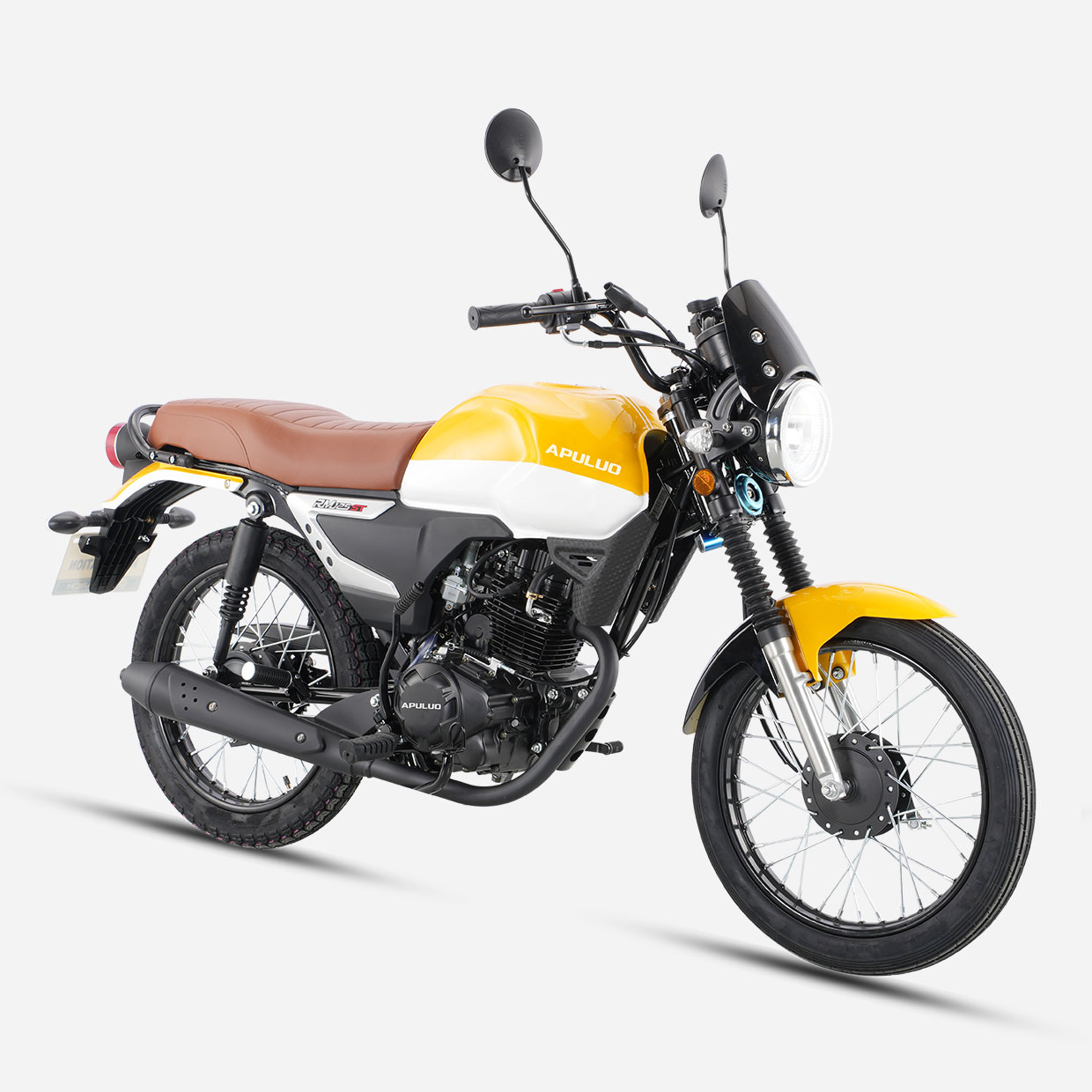

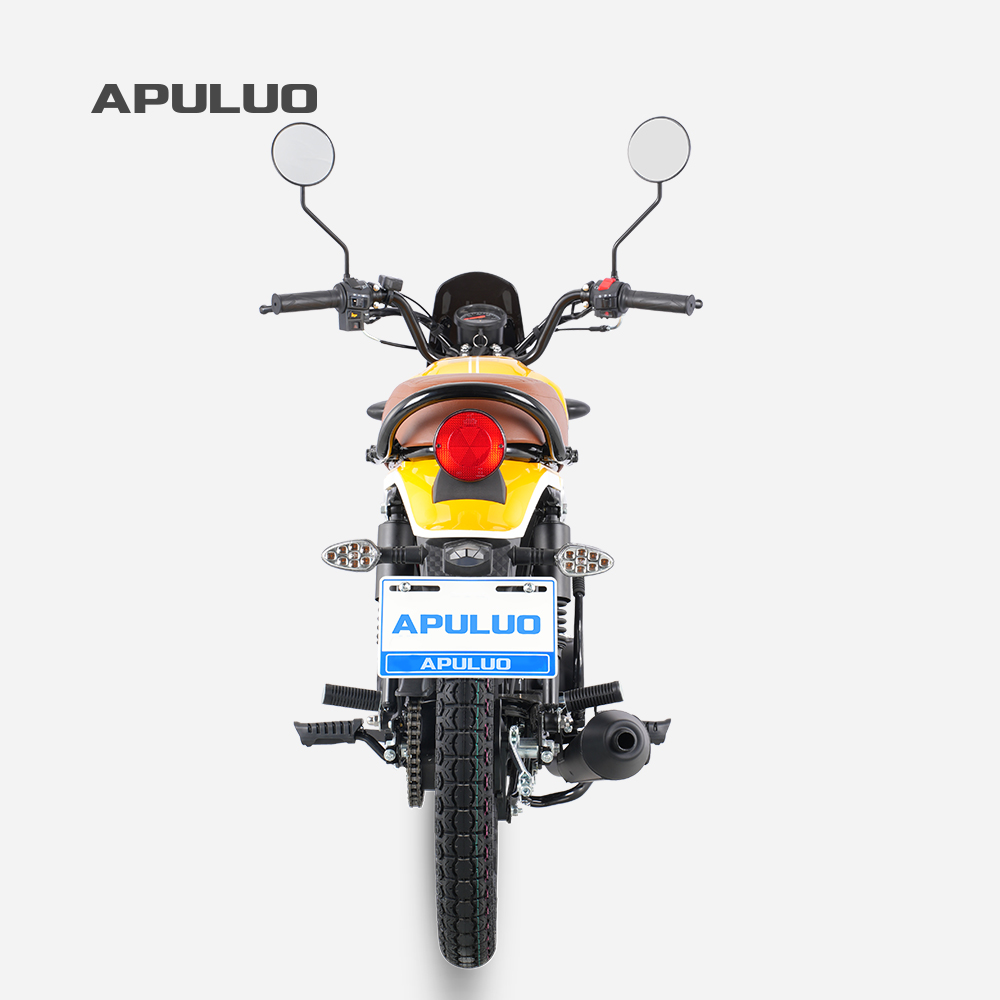

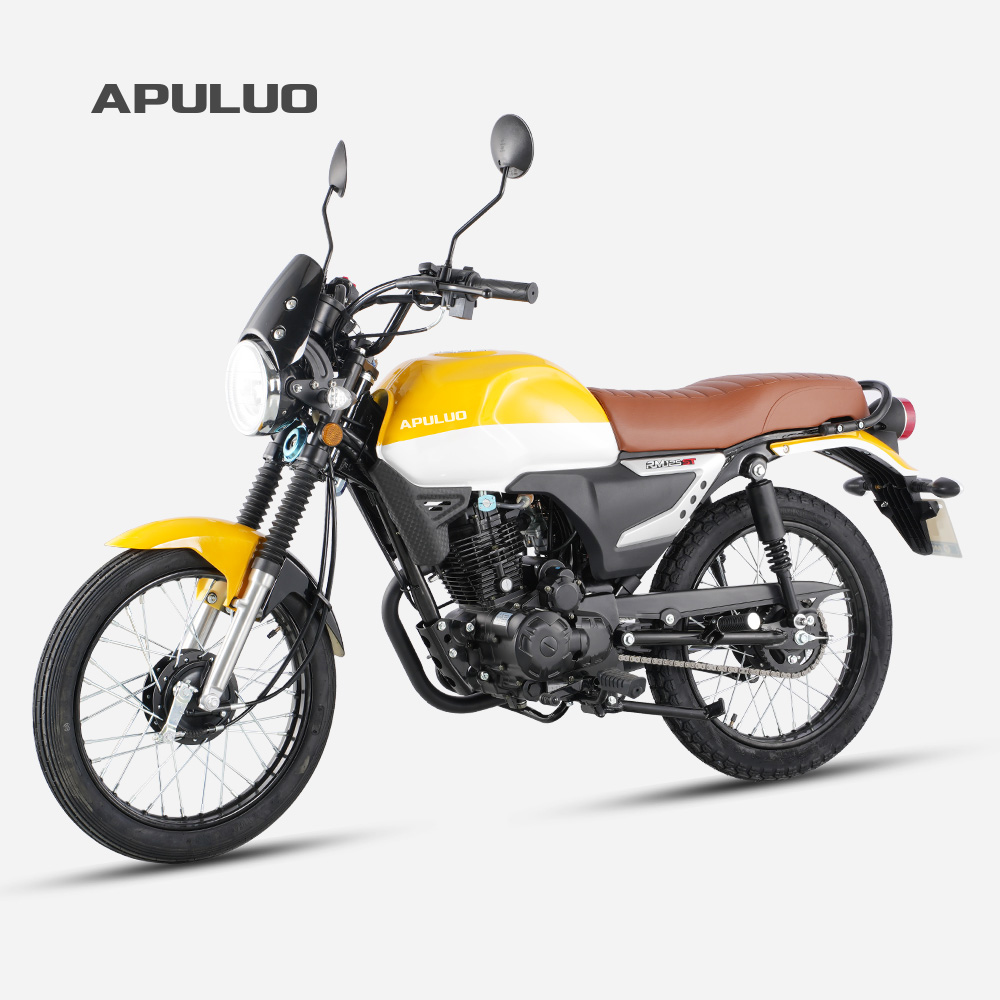

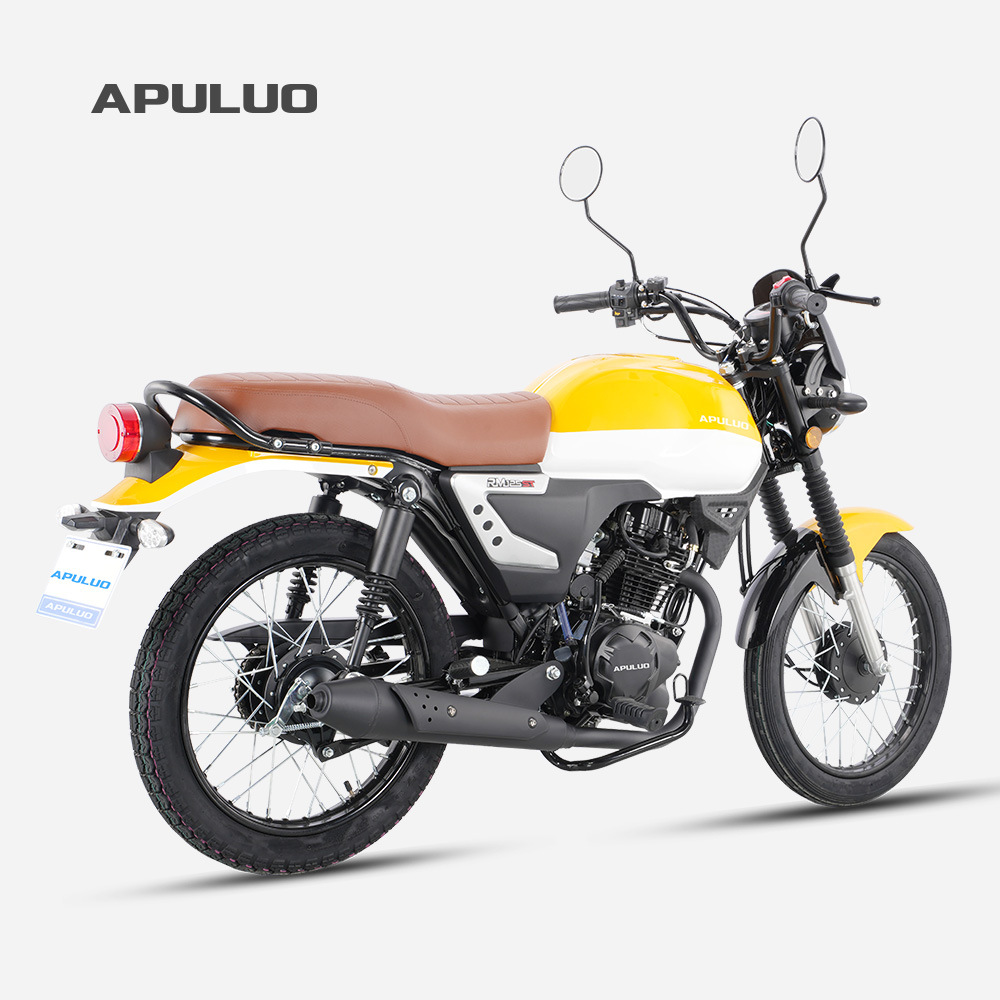

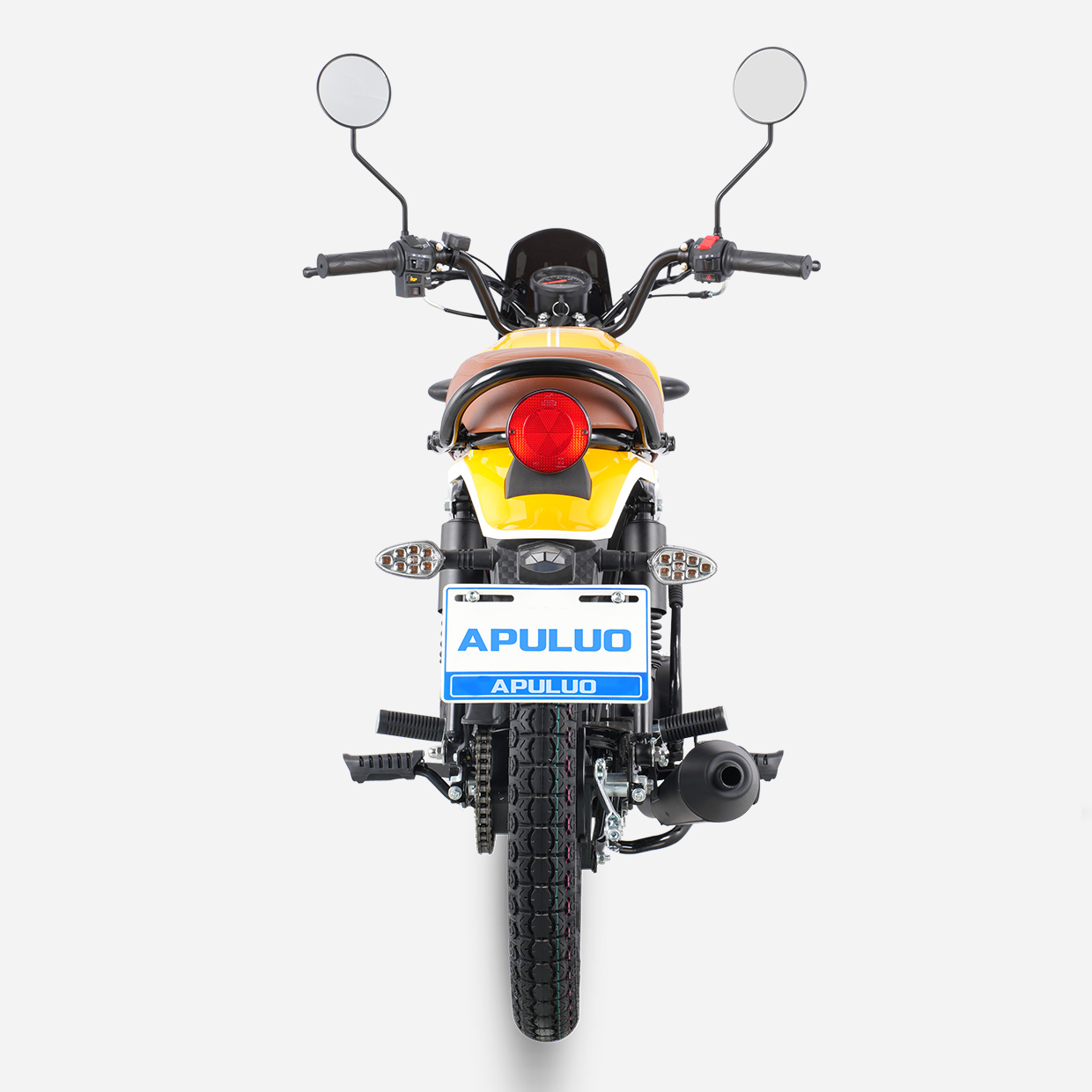

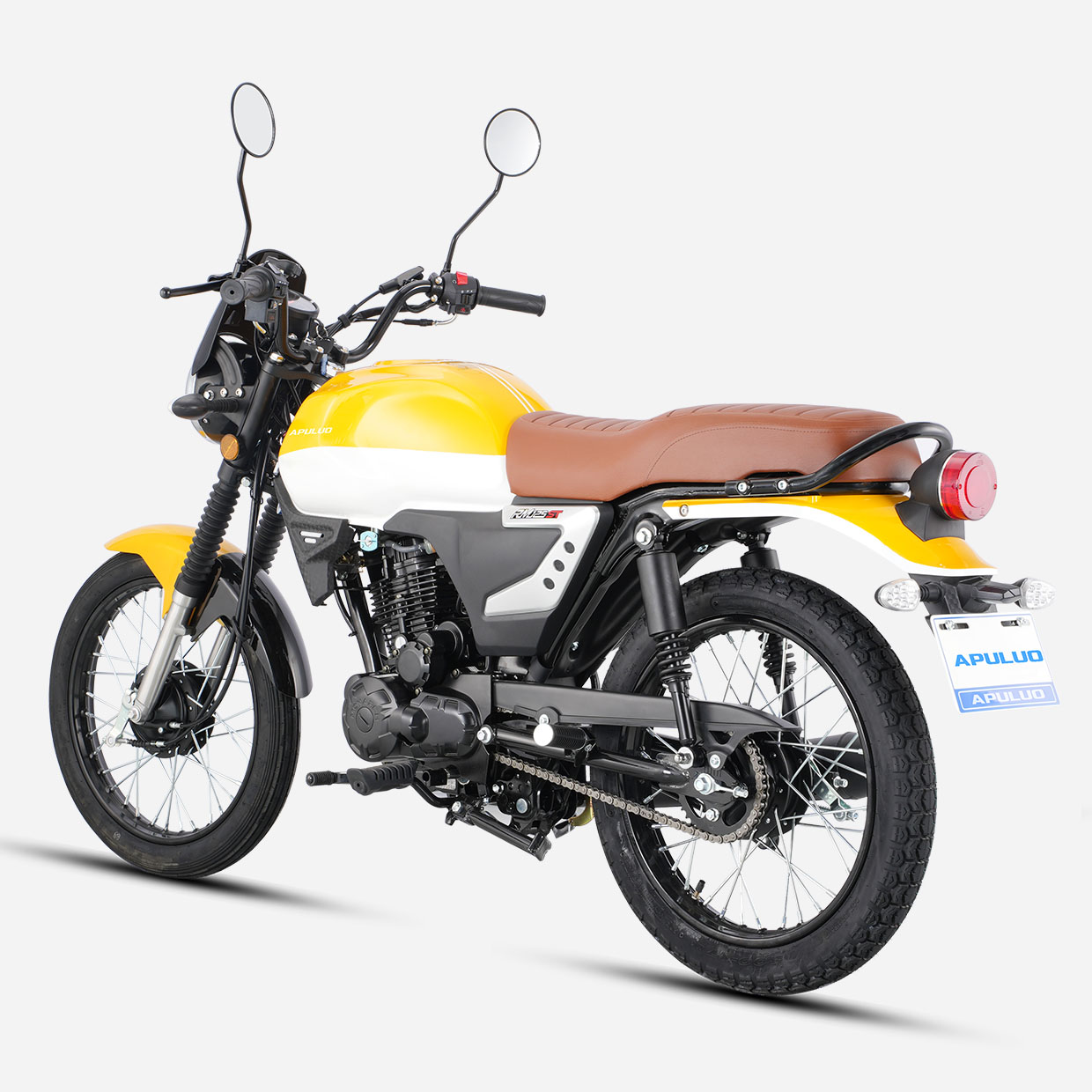

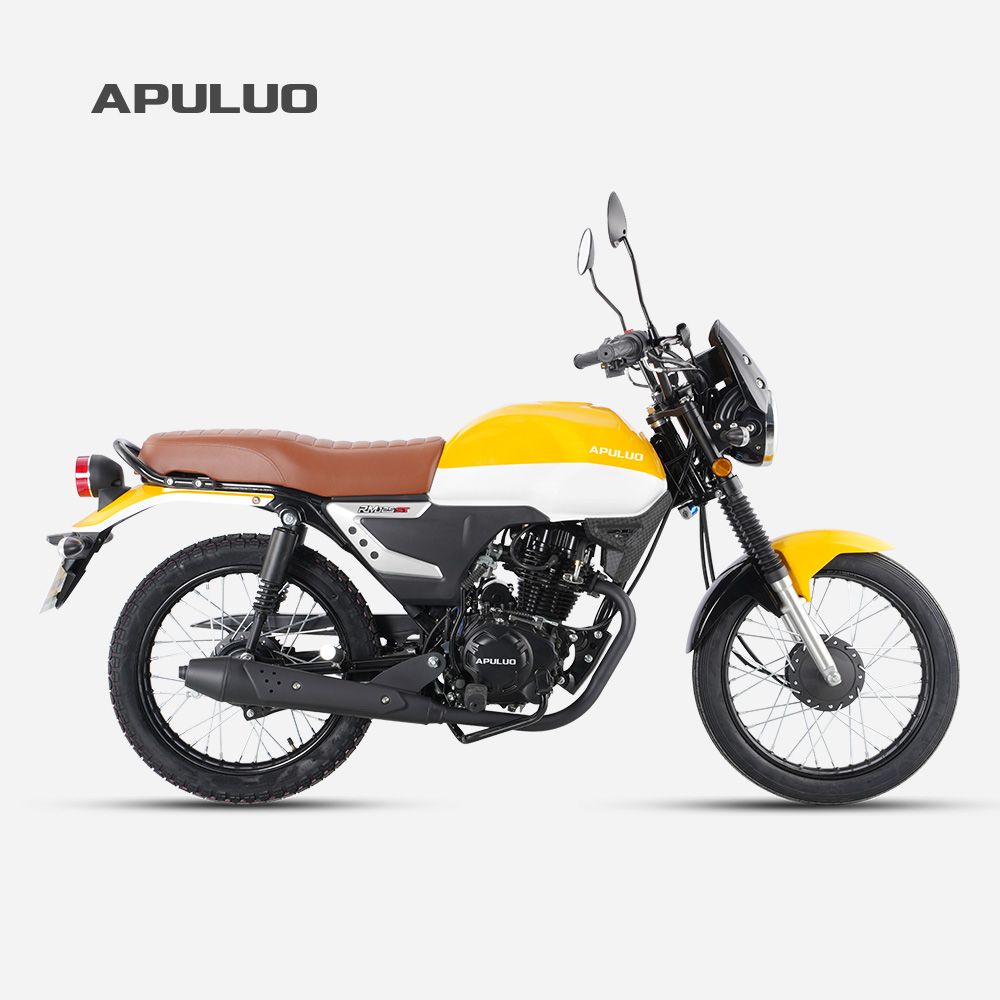

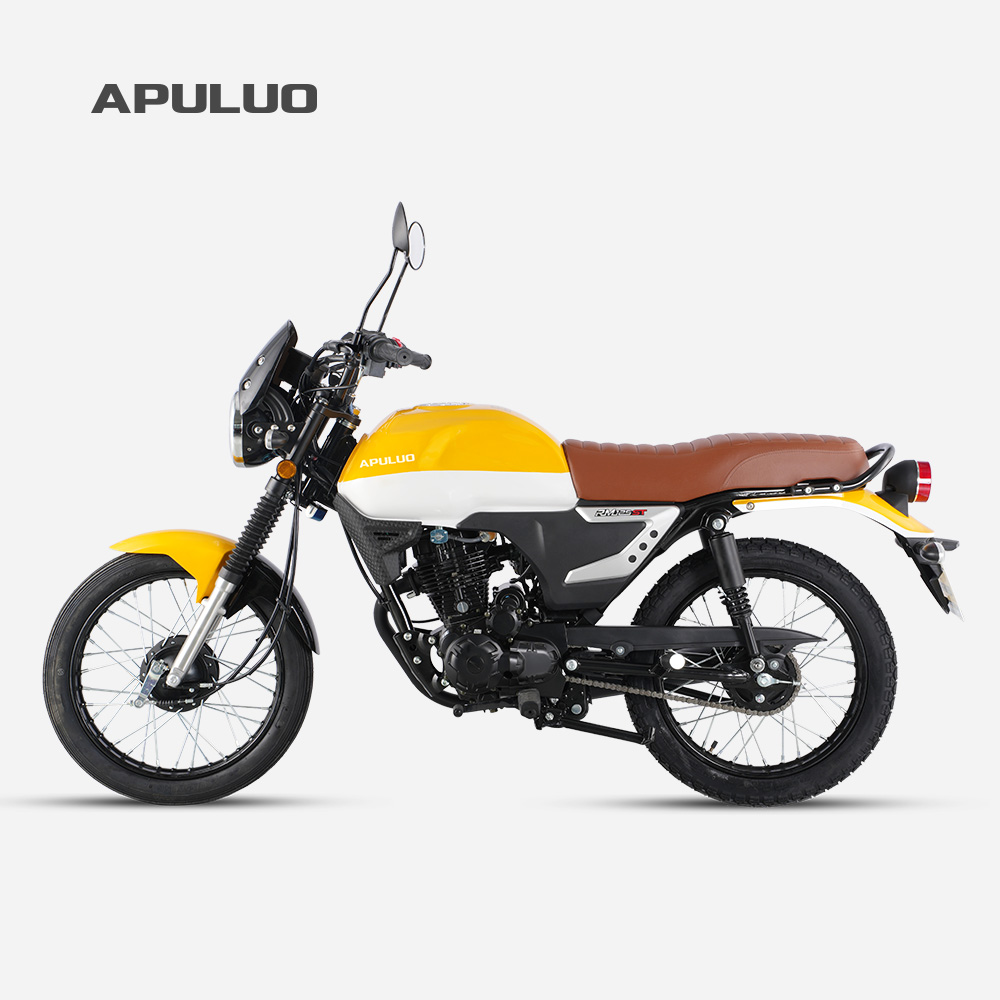

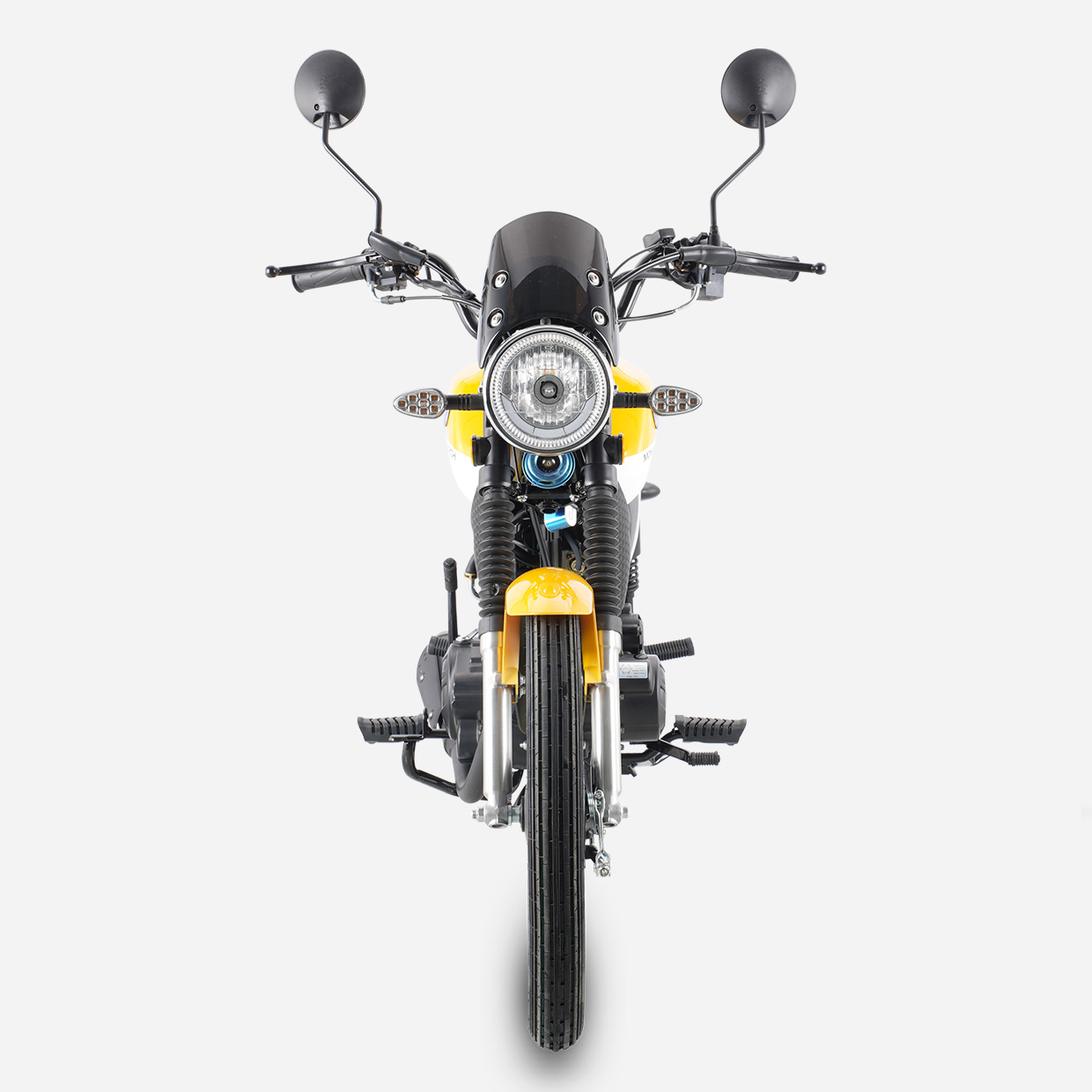

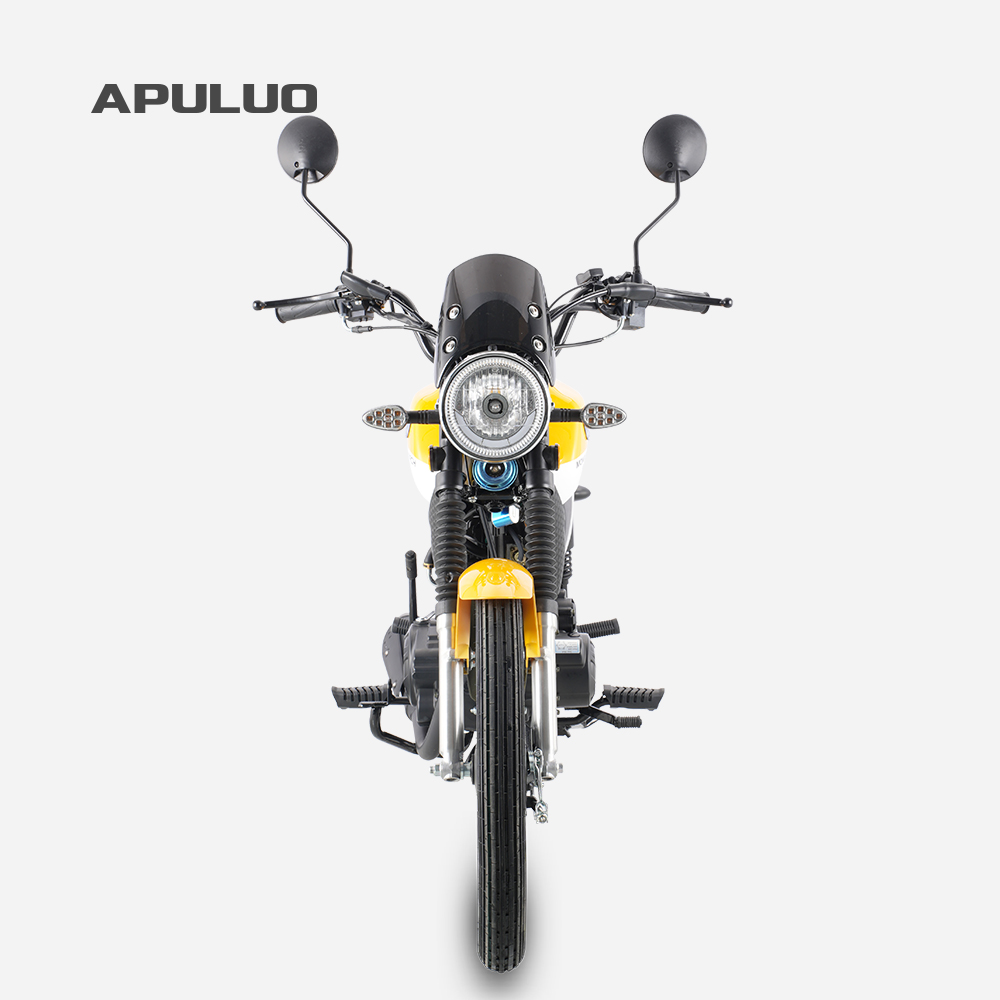

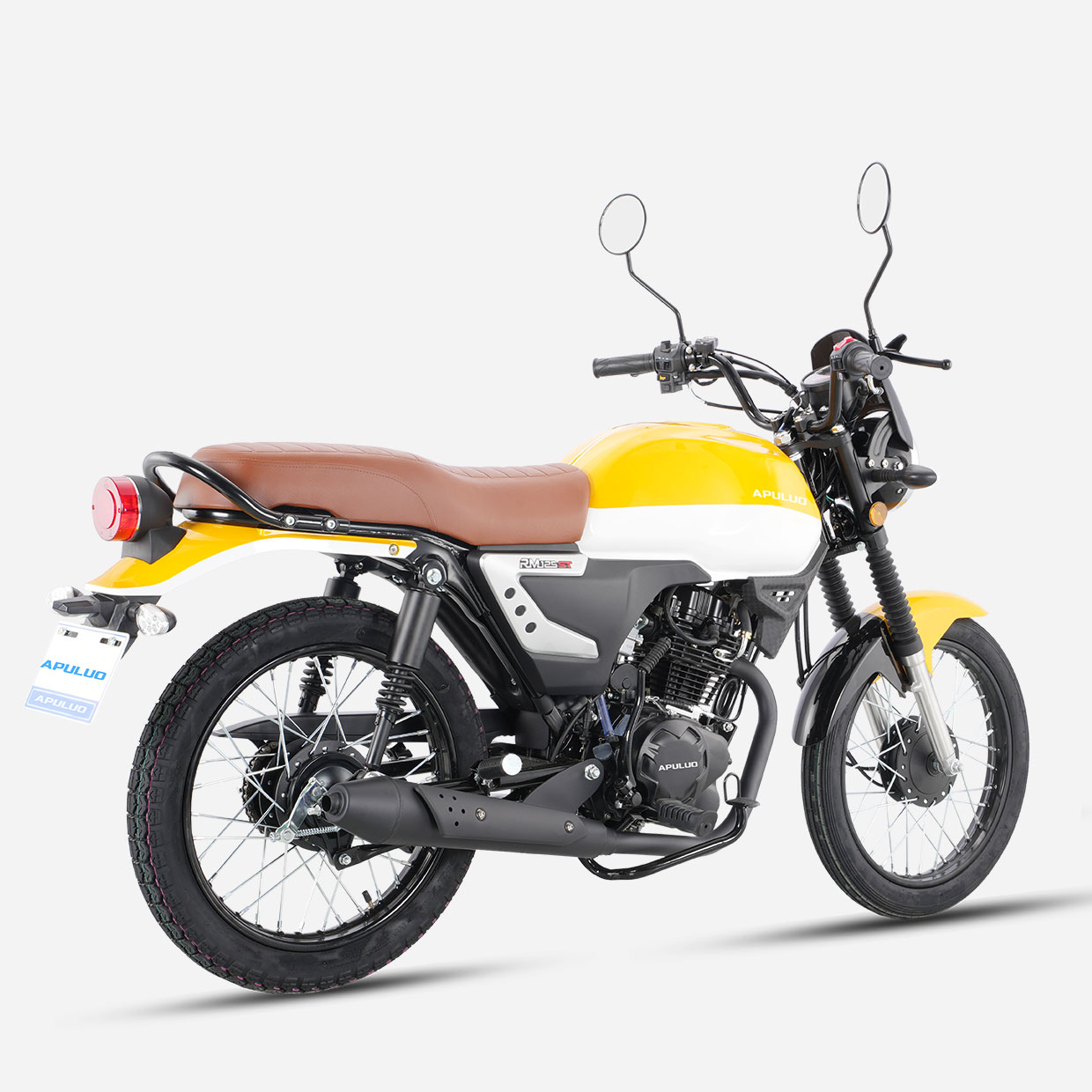

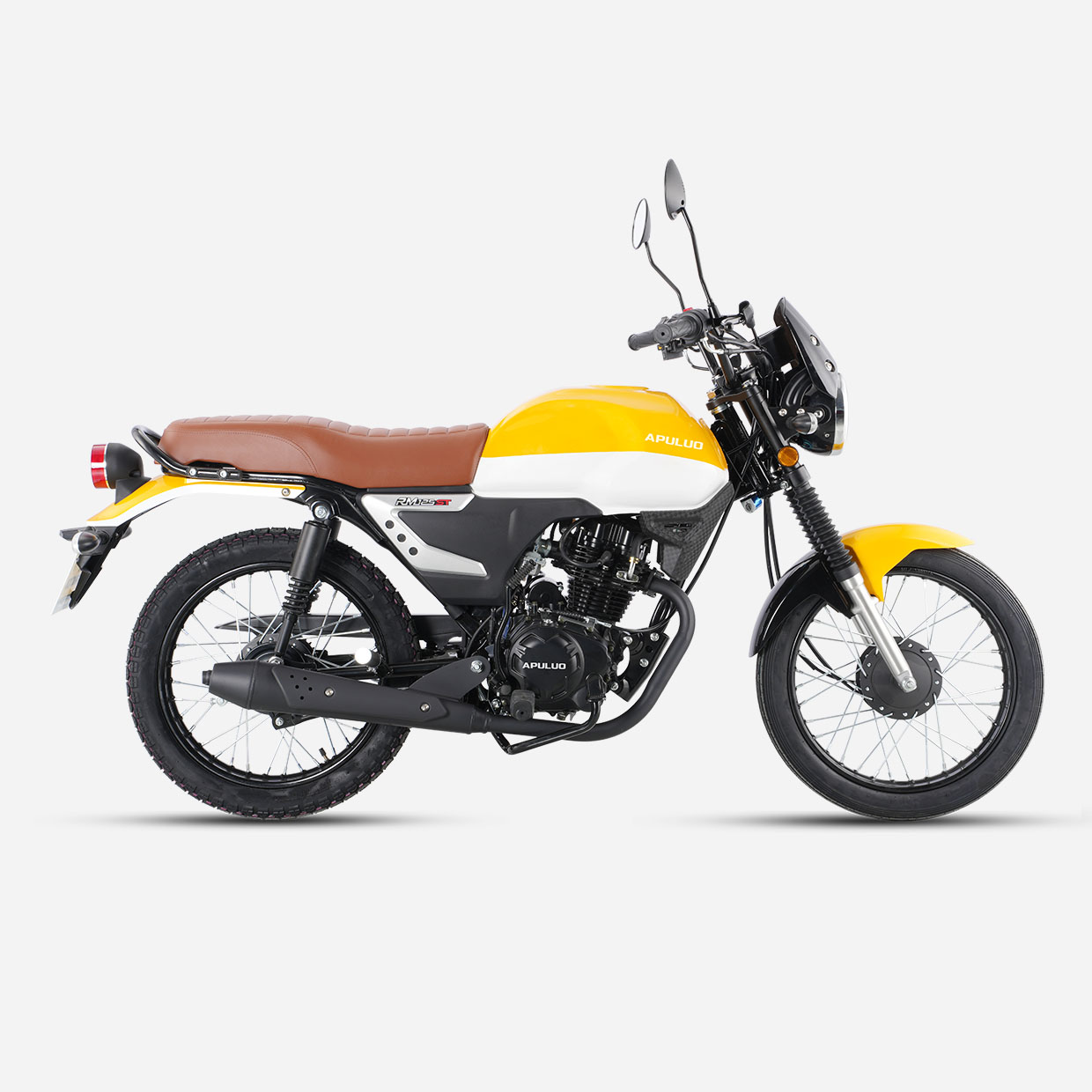

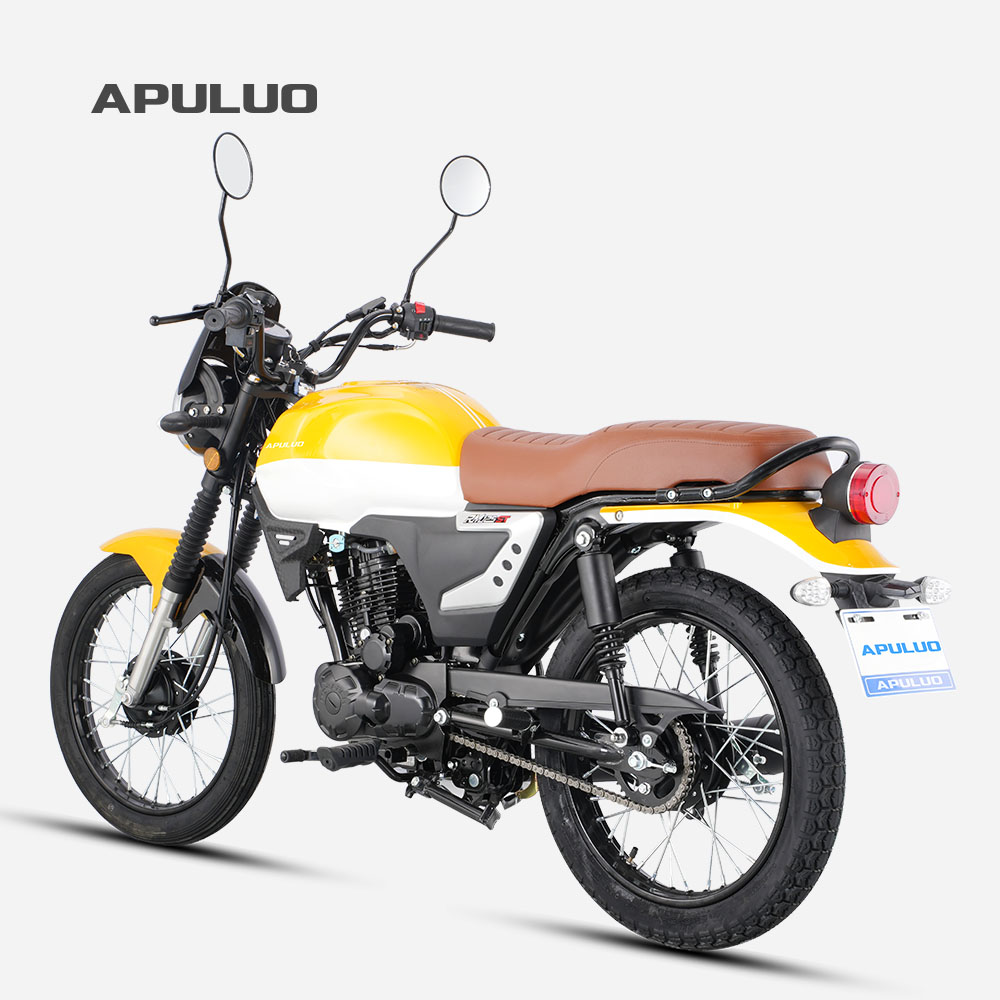

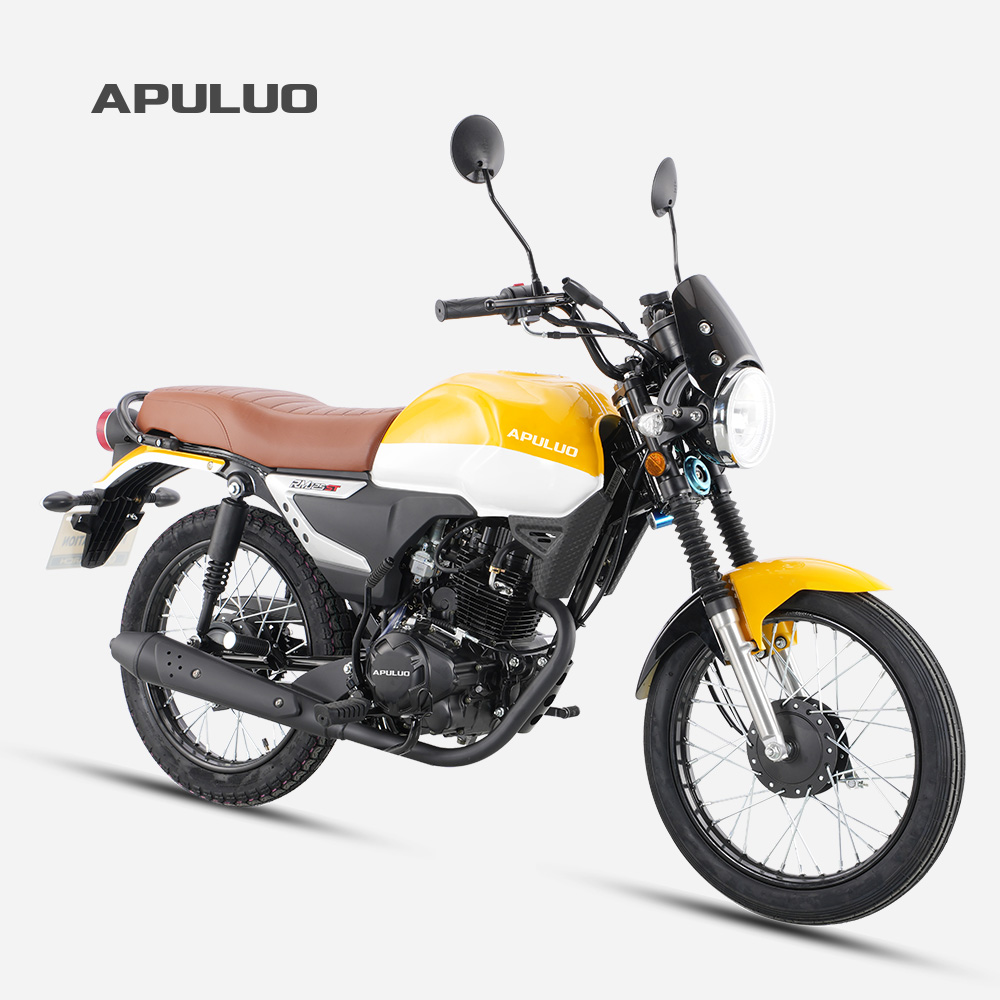

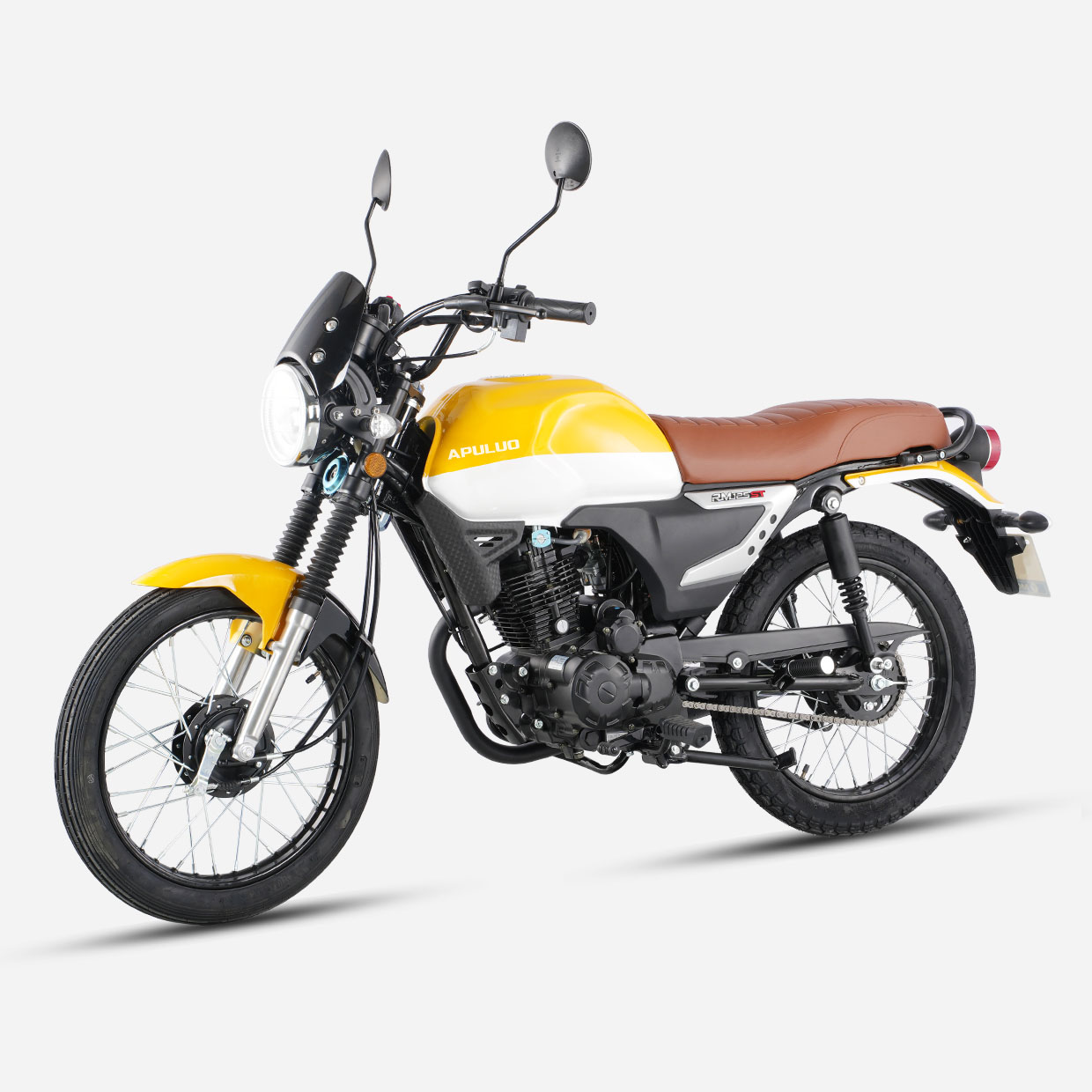

» CG MOTORCYCLES » AP150-7D
- Specifications
| Model | AP150-7D | Engine | Single-cylinder, four-stroke |
| Dimension (mm) | 2000*790*1020 | Engine model | 163FMJ |
| Wheelbase (mm) | 1290 | Engine displacement (ml) | 191 |
| Curb Weight (KG) | 110 | Cooling way | Air |
| Max. Speed (KM/H) | 90 | Compress ratio | 9.2:1 |
| Rated max. Load (KG) | 150 | Cylinder diameter* Piston stroke (mm) | 63.5*60.2 |
| Brake | Front disc brake/ Rear drum brake | Idle (r/min) | 1400土140 |
| Ways of Brake | Hand brake/ foot brake | Max power (KW/r/min) | 10.5/8500 ±100 |
| Starting way | Electric/ kick | Max. Torque(N.m/r/min) | 13.2/7000 ±100 |
| Front tire | 70/90-17 | Lowest fuel consumption (g/KW.h) | <354 |
| Rear tire | 100/80-17 | Lubricating system | Rorce-feed and splash lubrication |
| Available colors | 149 blackx Red、Green、 Gray | Gas distribution mode | Overhead camshaft |
